SAW -3600C型高頻逆變螺柱焊機
SAW-3600C IGBT INVERTER DRAWN-ARC STUD WELDER

產品簡介：

該成套設備，主機采用了高頻逆變技術和DSP全數字控制技術，自帶2個焊槍接口，可實現手動裝釘、自動裝釘、人工焊接。
該設備的最大焊接電流可達1800A。
The welding system applies IGBT inverter technolog and DSP control technology, and have the capacity carrying 2 welding can be achieved, when thesystem docks with robots under auto-feeding.
    Max.welding current can reach 1800A.

主機主要技術性能
TECHNICAL DATA
A、電路拓?fù)洌喝珮蚰孀?、全波整流?br /> B、電流控制技術：恒流PWM + 恒壓控制技術；
C、功率器件：IGBT 450A/1200V；
D、功率變壓器：鐵氧體雙變壓器；
E、監控接口：RS232C、USB2.0 通訊口；
F、系統控制：DSP+FPGA+CPLD、實時操作系統；
G、操作控制：手持觸摸屏 + 功能按鍵；
H、屏幕顯示：觸摸屏、中/英文；
I、硬件抗干擾：多級濾波器、隔離供電，光電隔離；
J、軟件抗干擾：實時操作系統，模塊式軟件結構、軟件
陷阱；
K、監測系統：實時工況、故障監測、能量檢測；
L、質量保證：AQC-1主動質量控制技術；
A. Circuit topology: Full Wave Bridge Rectification
B. Current control technology: Constant Current PWM
or Pulse
C. Power switch: IGBT
D. Power Transformer: Ferrite Dual Transformer
E. Interface monitoring: optoelectronic isolation
F. System Control: DSP+FPGA+CPLD
G. User interface: Touch Screen
H. Language: Chinese/English
I. Network Topology: Real-time half-DUPLEX RS
485, Ethernet, CAN, USB
J. Hardware Anti-interference: isolated power supply
K. Software Anti-interference: Distributed Watchdog,
error return and check, hiccup reset
L. Monitoring system: real-time working condition and
fault detection
M.Quality assurance: monitoring and optimization of
welding quality

FRS系列螺柱自動送料機

FRS STUDS FEEDER

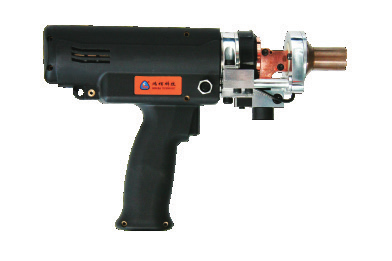

GMM系列手動直線電機螺柱焊槍

GMM SERIES MANUAL LINEAR

MOTOR STUD WELDING GUN

產品鏈接：http://www.heqicehui.com/luozhuhanq/30.html

GSM系列半自動直線電機螺柱焊 槍
GSM SERIES SEMI-AUTOMATIC

LINEAR MOTOR WELDING GUN

產品鏈接:http://www.heqicehui.com/luozhuhanq/29.html
